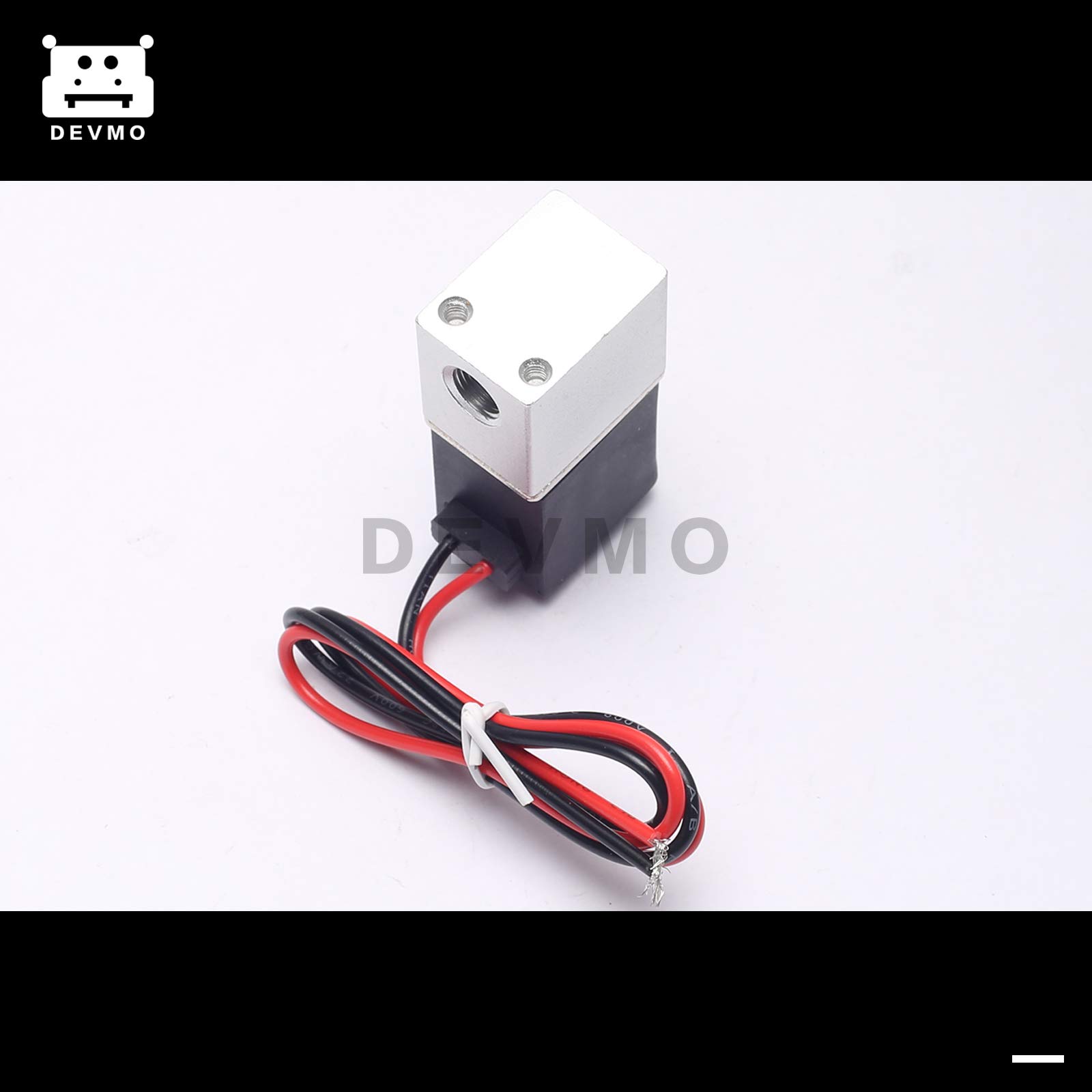

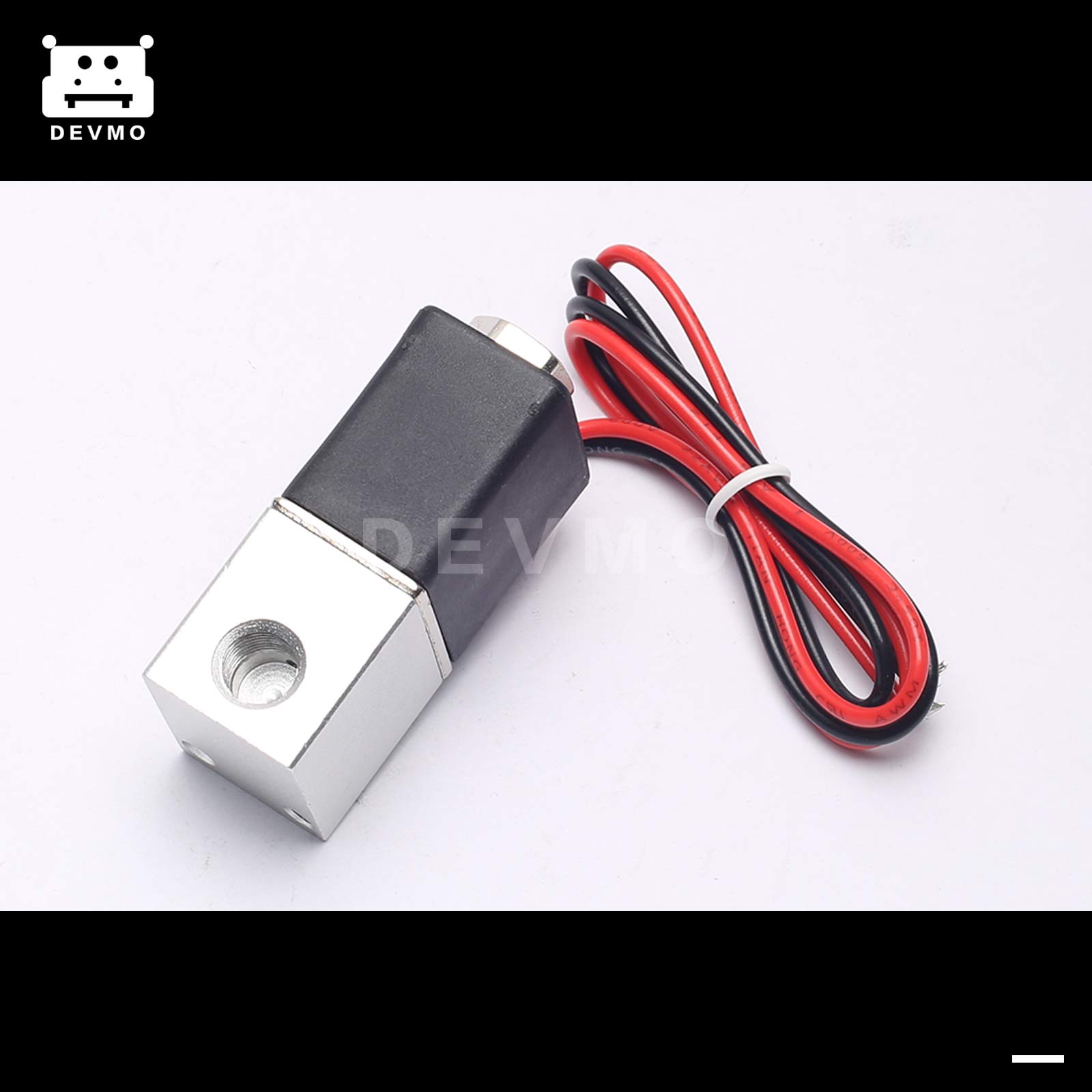

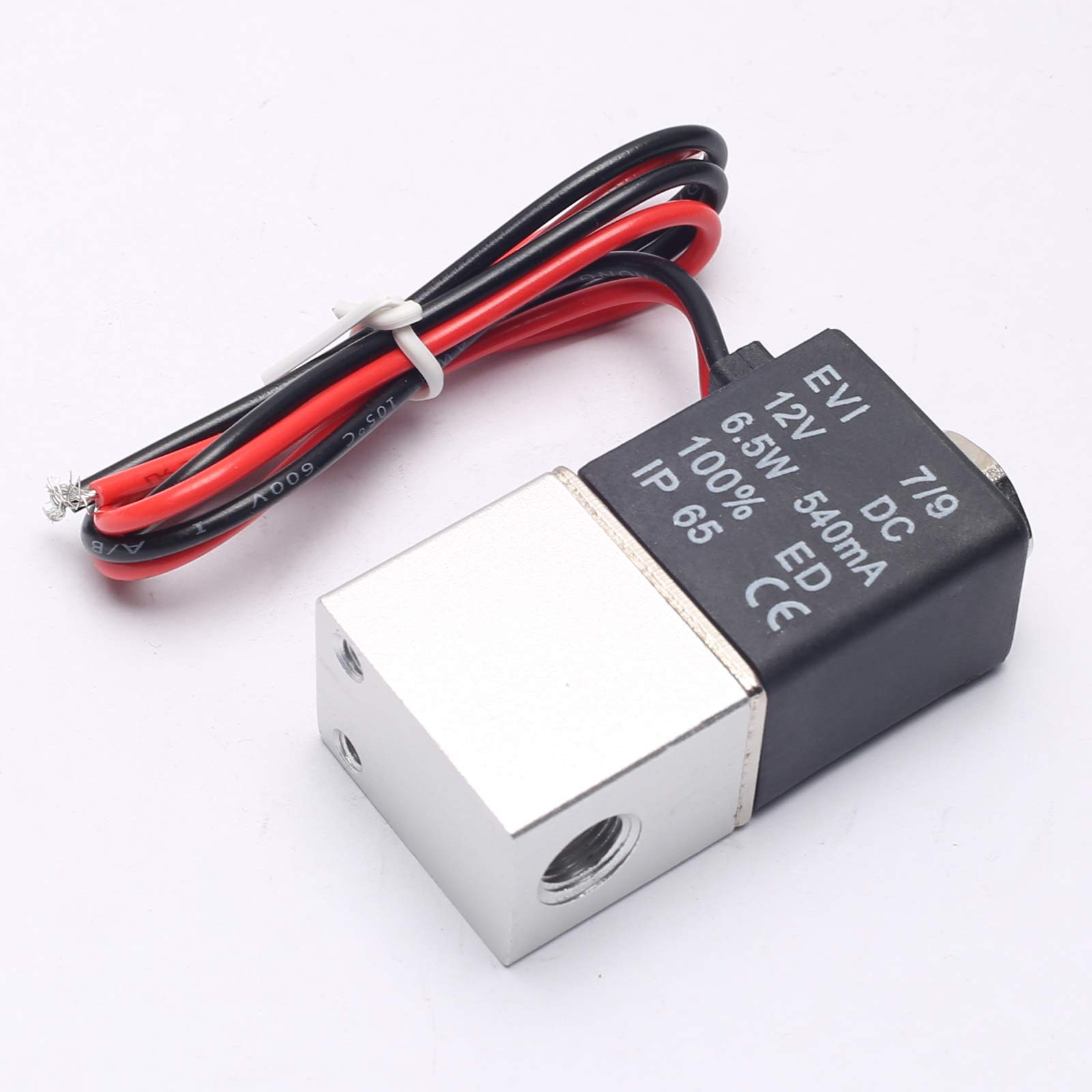

Type: 2 way 2 positions, NCHousing Material: Anodised aluminumSealing Material: NBR (Buna-N)Anchor Tube Material: brassPiston and Spring Material: Stainless steelSize: approx. 60*29*20mmConnection Size: 1/8 "NPT socketwinding Voltage: DC 12VService Media: air, gas, liquid, waterFlow Model: unidirectionalFlow Rate: 0.23CV (fluid flow), 22 SCFM at 100 PSI (air flow)Operating Pressure: 1.0MPa (air, gas)Max. Compressive Strength: 1.2MPaResponse Time: Less than 50 msOperating Pressure: 0-0.8 (can be operated at 0 PSI (vacuum))Operating Temperature: -10 to +80℃Coil Power: 6.5wCoil Class: F-Class IP 65Feature:Normally closed 2-way quick release solenoid valve.Has a 1/8 inch NPT inlet and a 1/8 inch NPT outlet port.Keep a constant constant flow and prevent dry burning and monitor the flow.Designed to automatically control the fluid and gas, perfect for electric powered pneumatic power control.Fine workmanship and good performance.Easy to use.Long service life.Suitable for liquid, water, oil, intelligent drinking fountains, water heaters, straight drinking machines, steam engines, air conditioning, refrigeration etc.Package included:1 x Solenoid ValveNote:Please allow 1-5mm errors due to manual measurement.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
