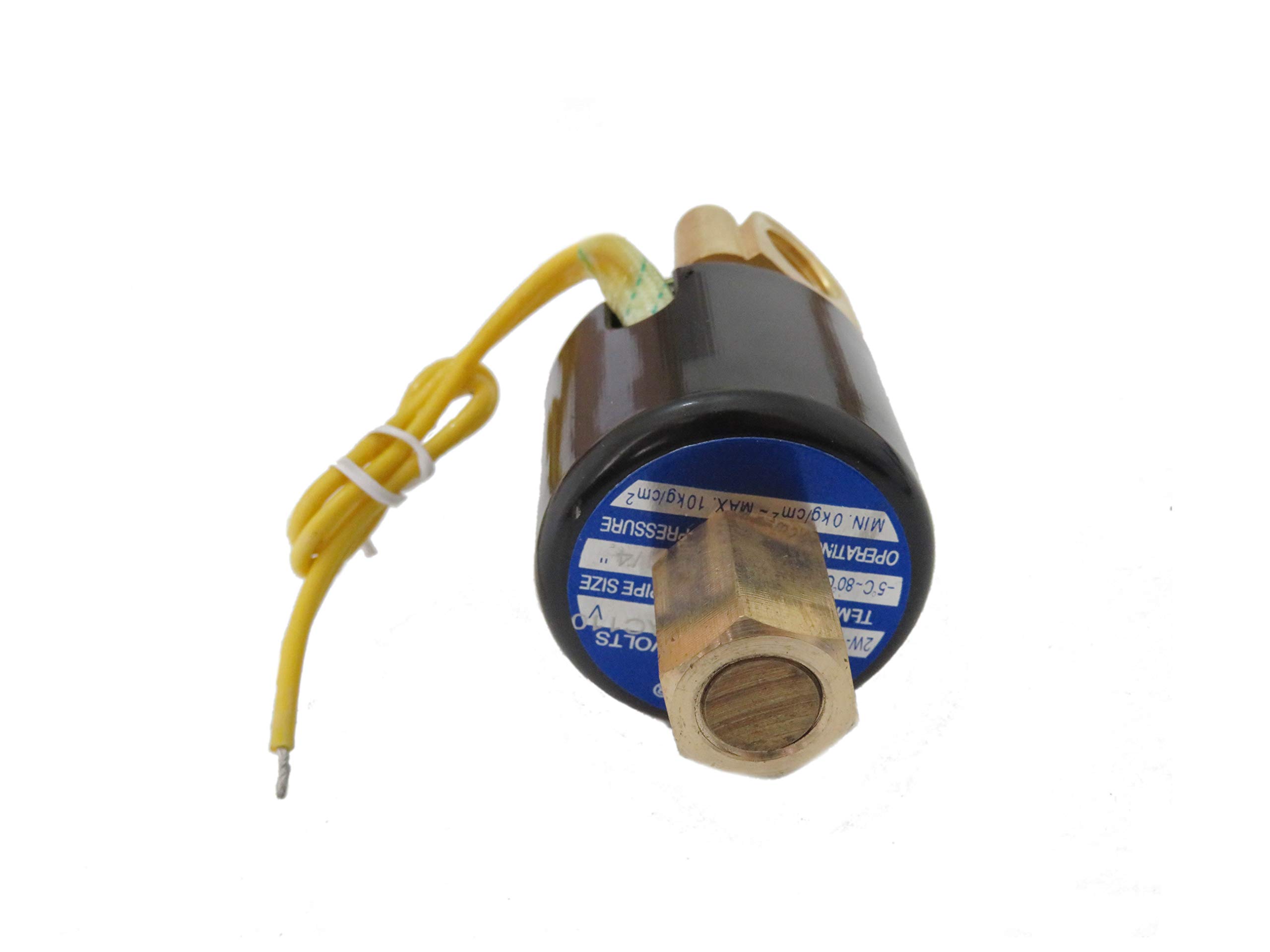

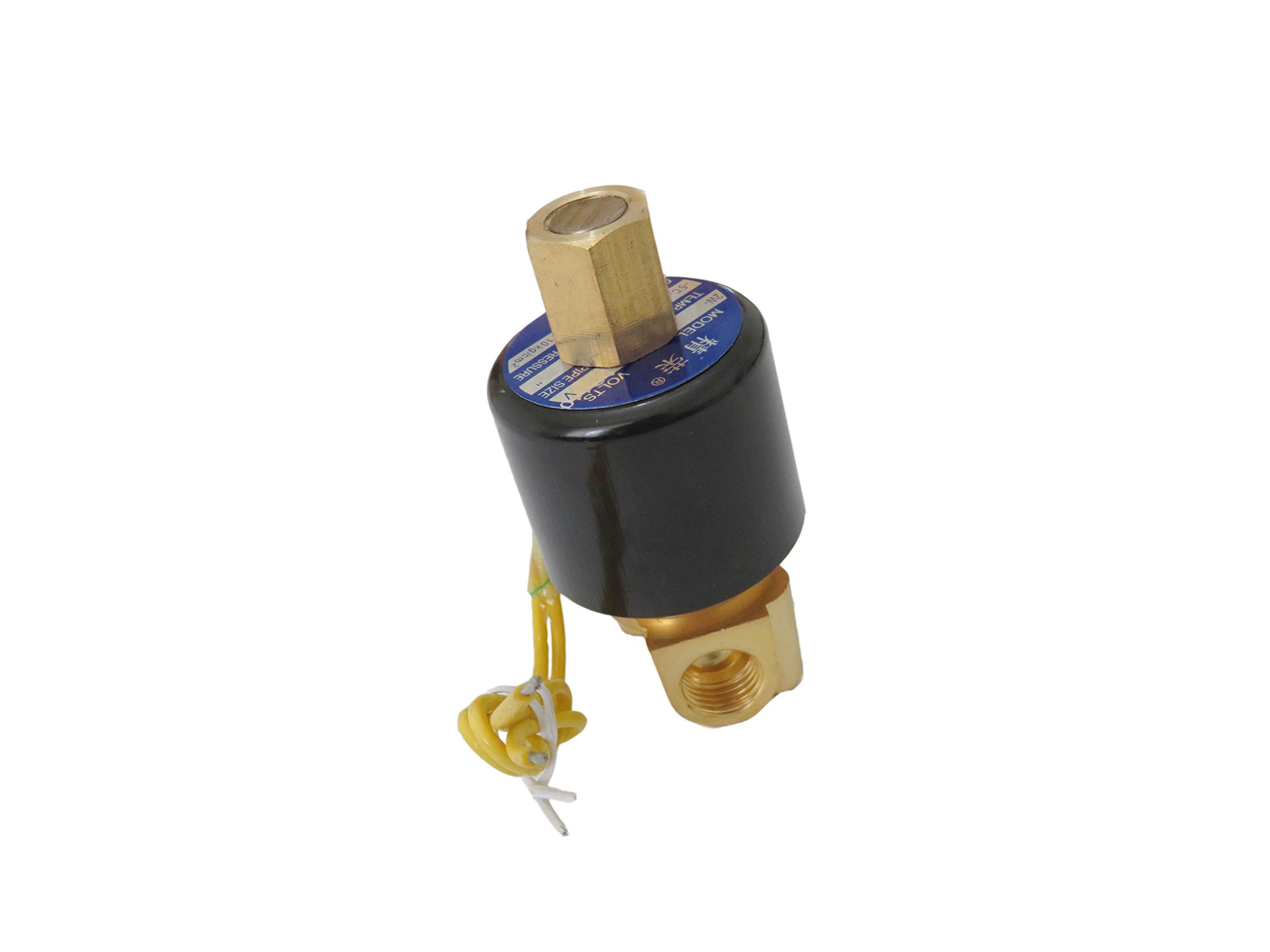

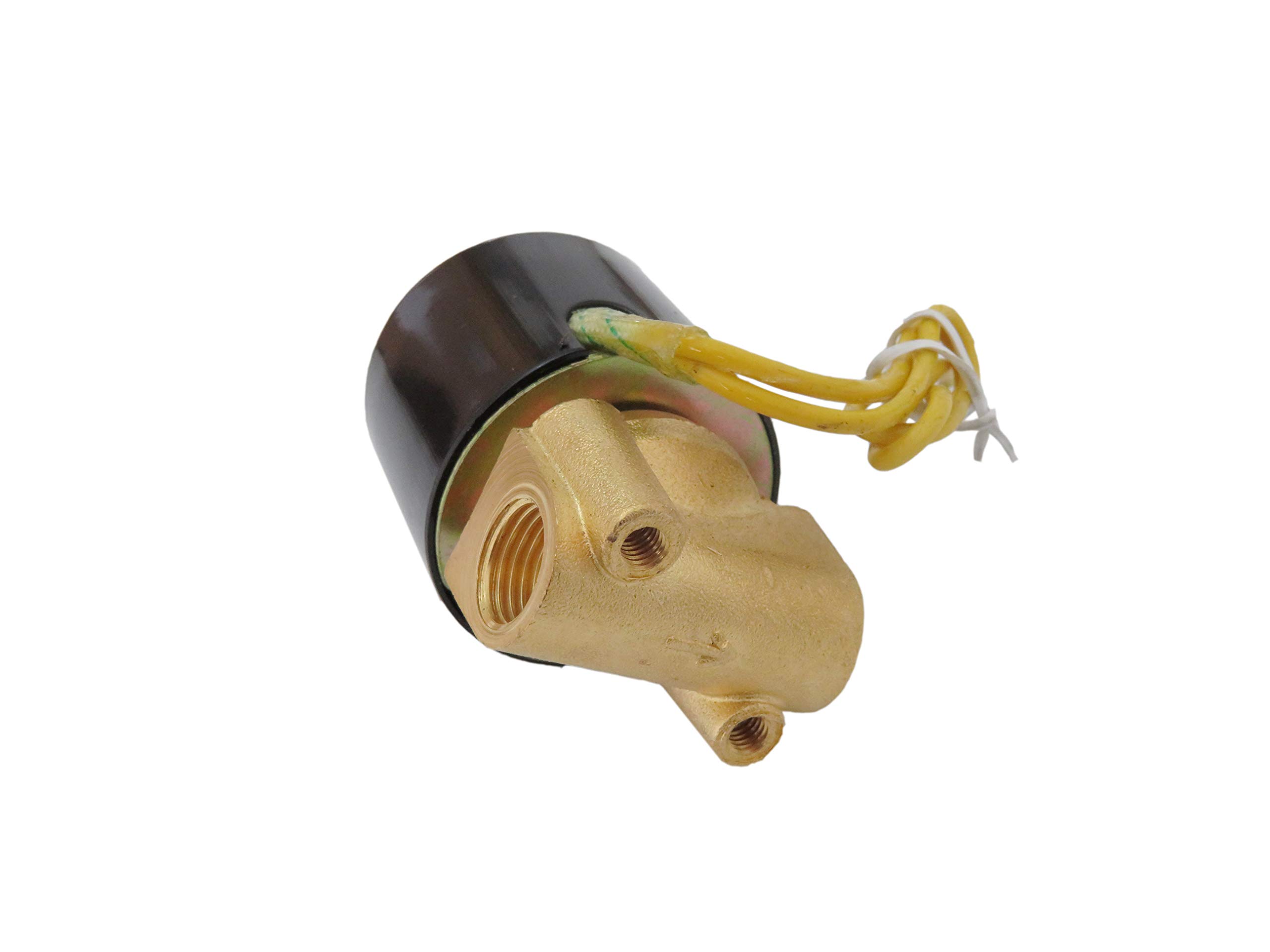

1/4 Inch 110-120 VAC Normally Open Brass Solenoid Valve Each valve is individually tested! Highlight: Body Material: Forged high-quality solid brass -Operation Mode: N/O (normally open) -Pipe Size: 1/4" NPT -Voltage: 110-120 VAC Diaphragm/Seal Material NBR Applications: Industrial grade highly reliable -Mechanical Operation Type: 2-way 2-position direct acting -Operation Mode: Normally open (valve closes when coil is energized) -Pipe Size: 1/4" NPT female (18 TPI) -Orifice Diameter: 5/32" (4 mm) - Flow Rate: Cv = 0.5 -Flow Direction: Unidirectional (follow the arrow on valve body) -Media: Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline) -Operating Pressure Differential: 0-145 psi (0-1 MPa, gravity-feed capable) -Operating Temperature: 15-125 °F (-10~50 °C) -Media Temperature: 15-180 °F (-10~80 °C) -Dimensions: See product diagrams -Weight: 14 oz Mounting Threads (Base) M4 Electrical -Voltage: 110-120 VAC Current 0.2 Amp -Wattage: 24 Watt -Coil: Copper wire in resin-molded casing -Connectors: DIN Material: -Body: Brass -Insert: Stainless steel (plunger, spring, etc.) -Seal NBR (aka Buna-N, Perbunan, and nitrile rubber) -Diaphragm: NBR (fiber-reinforced) Additional Info: Available Coil Voltages 110/120VAC, Available Port Sizes 1/4" Available Types of Operation: Normally Closed and Normally Open Replacement/Spare Parts: Coil
