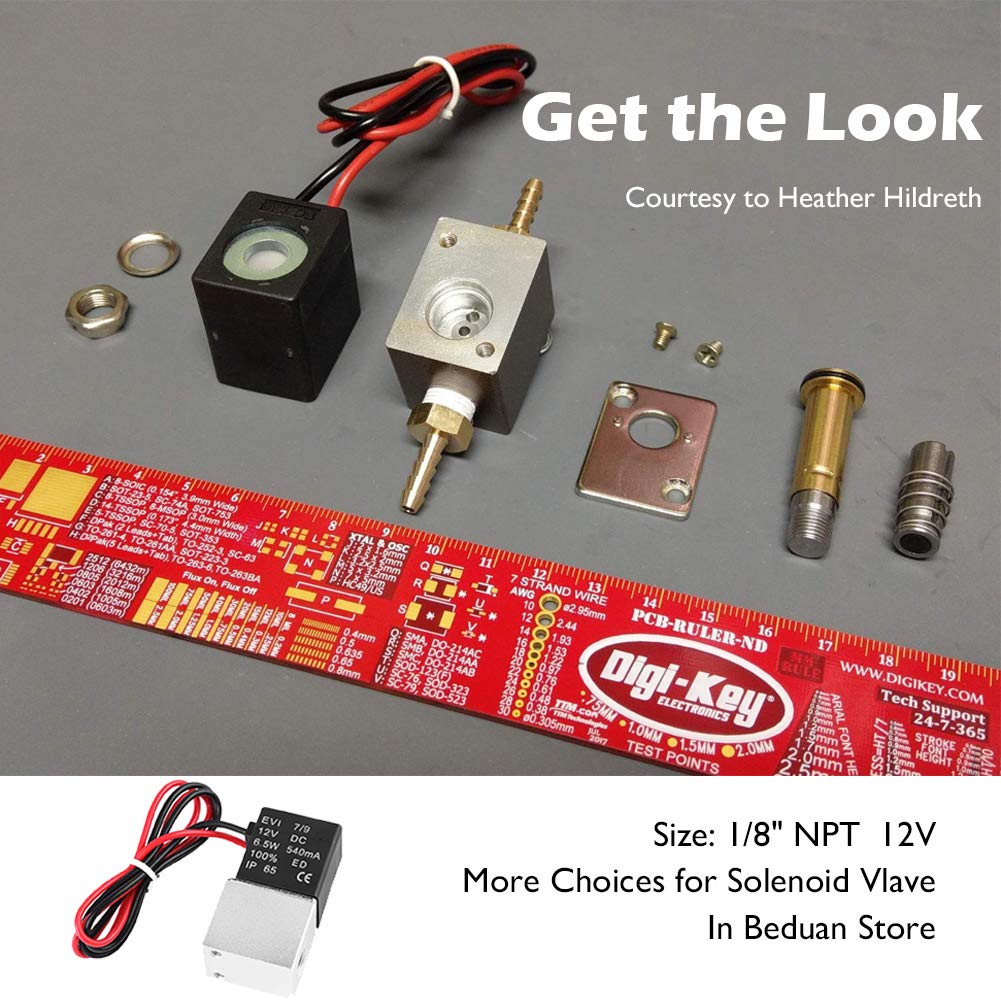

Beduan, manufacturer & distributor of top pneumatic supplies Our production line includes: Compressor Filter and RegulatorPush to Connect FittingsSolenoid ValveCompressed Ferrule FittingMarginal productSearch Beduan and choose what you want Beduan 2 Way Electric Solenoid Air Valve Normally Closed Electric Solenoid Body Material : Anodized Aluminum Pressure Range: 115 PSI. Size：1/4” | 1/8“ Position & Way Number : Two-position,Two-way. 2-way normally closed solenoid valve is to control On/Off of air and inert gas. This solenoid valve has one 1/4" inch NPT inlet and one 1/4" inch NPT outlet port. Valve stays close when the coil is de-energized- and it opens when energized. Has two holes in the bottom and can be mounted in any position. Service Media : Air- Gas- Liquid- Water Operation Model : Direct Acting Flow Model : Uni-Directional Flow Rate : 0.23Cv (Fluid Flow)- 22 SCFM at 100 PSI (Air Flow) Response Time : Less than 20 ms Seal Material : NBR (Buna N) Armature Plunger & Spring Material : Stainless Steel Coil Power : 6.5W Coil Class : F Class IP 65 (CE) Coil Duty : 100% ED (Continuous Duty) Operating Pressure : Vacuum to 115 PSI Operating Temperature : -5 to 80 °C Voltage Tolerances : DC : +10% –5% , AC : +10% -15% Electrical Connection : Grommet Coil with 12" Lead Wire 2ACK Series Electric Solenoid Valve Solenoid Valve Installation Instructions Clean and rinse the impurities in the pipeline before installation;The thread should be wound with Teflon Tape. Be careful not to drop the debris into the pipeline to prevent blocking the solenoid valve.When installing, keep the arrow direction on the valve body consistent with the flow direction of the medium;If there is reverse pressure, a check valve shall be installed.In order to ensure and extend the service life of the solenoid valve, the installation should be horizontal, the coil is vertical up, not vertical or backward installation.After the solenoid valve coil outlet wire (connector) is connected, it should be confirmed that whether the contact of electrical components should be firmly connected should not shake, looseness will cause the solenoid valve not to work.Solenoid valves that are out of service for a long time should be cleaned of impurity condensation before use.Solenoid valves are not suitable for fluids under the following conditions: A.Changing into a liquid by heating and into a solid by cooling; B.Viscosity greater than CST50. Brass Solenoid Valve Water Solenoid Valve solar solenoid valve Air Solenoid Valve Nylon Solenoid Valve Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 899 4.2 out of 5 stars 340 4.2 out of 5 stars 182 4.4 out of 5 stars 553 3.6 out of 5 stars 31 Price $21.99$21.99 $8.99$8.99 $12.99$12.99 $9.99$9.99 $10.98$10.98 Port Size : 1/2" Inch NPT Female 1/4" Inch NPT Female 1/8" Inch NPT Female 1/4" Inch NPT Female 1/4" Inch NPT Female Port Coil Voltage : 12V DC 12V DC 24V DC 12V DC 12V DC
